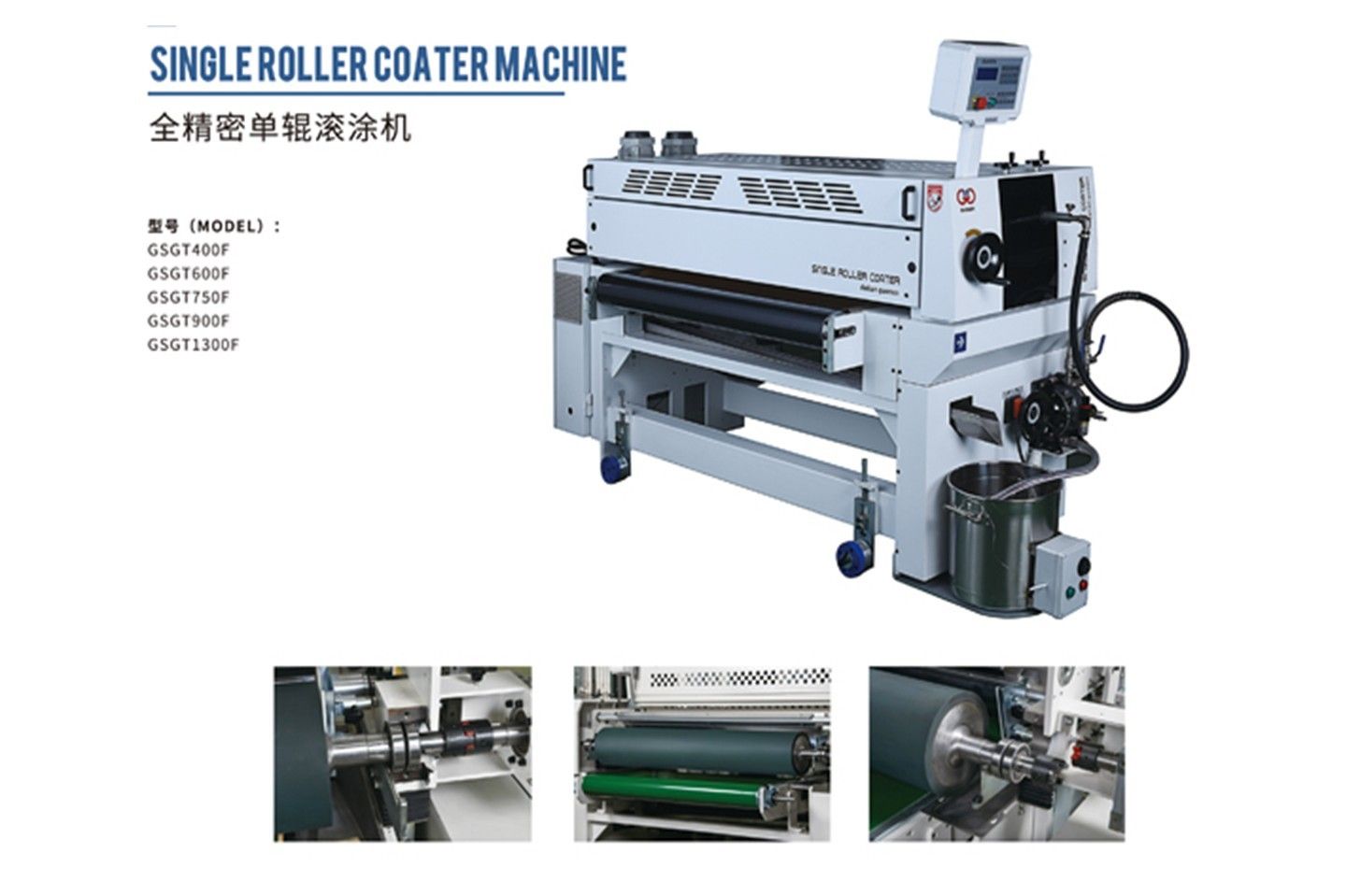

Precision single-roll coater

1. This machine is designed for painting flat panel surfaces. It uses a rubber roller to apply paint, a steel roller to meter paint, and a paint pump to recycle paint.
2. Line speed 3-18 meters/minute, quick-release rubber roller, high production efficiency.
3. Coating amount 8-30g, adjustable, thin and uniform paint film, good coating effect.
4. Feed speed adjustment, board thickness setting, paint heating, intelligent controller, simple and practical operation.
5. Steel and rubber rollers can be optionally equipped with motor lifting, emergency pneumatic lifting protection for rubber rollers.
6. Interlock protection, three-phase five-wire power supply system, safe operation.

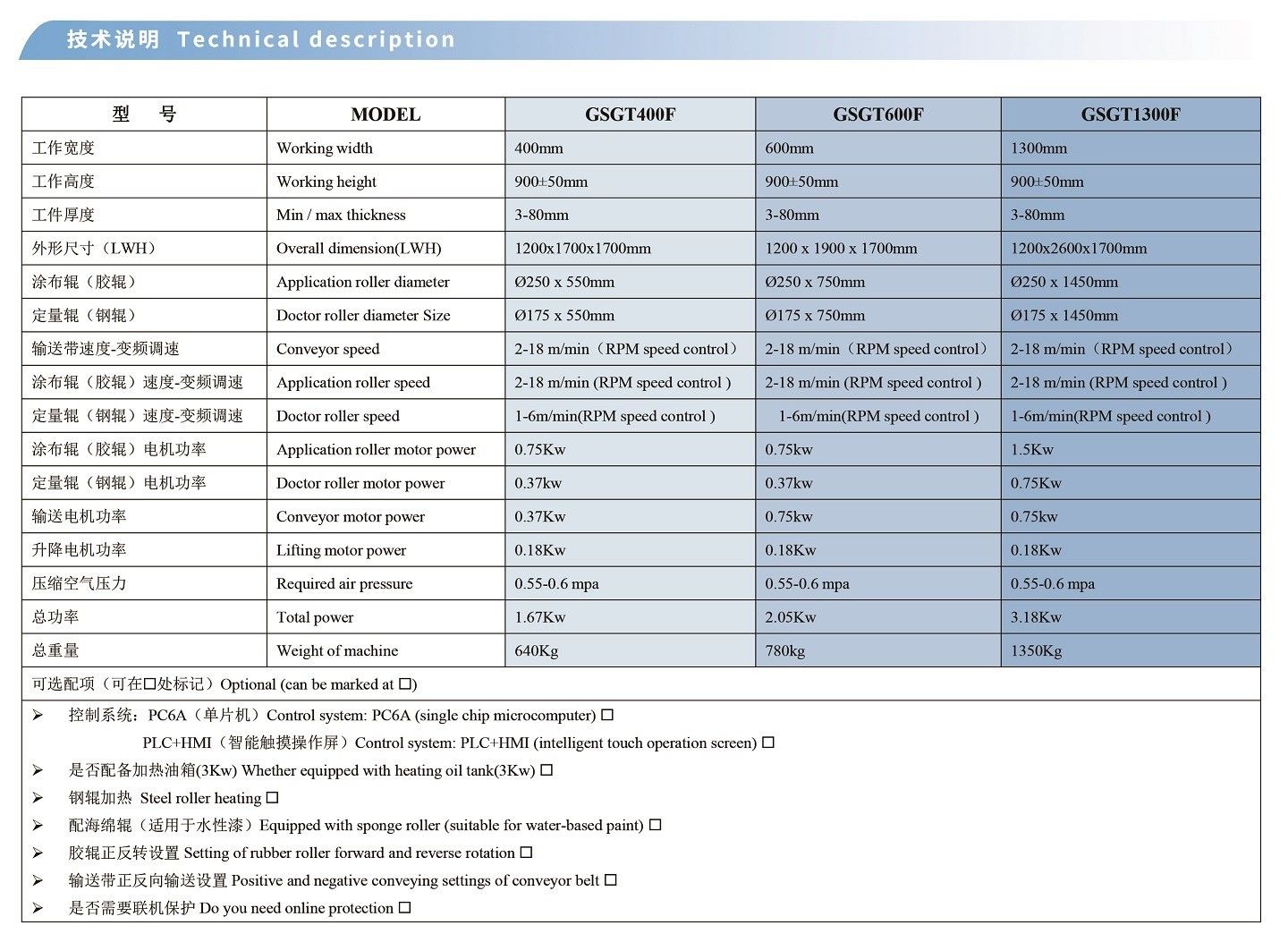

Effective processing width: 1300mm; Effective processing thickness: 3-80mm; Processing length: 300mm; Conveying speed: 18m/min; Conveying power: 0.75kW; Coating roller power/size: 0.75kW/Ø50×1500mm; Distribution roller power/size: 0.37kW/Ø175×1500mm; Overall dimensions (L×W×H): 2000mm×2700mm×1700mm.
