Precision double-roller coater

1. This machine is designed for painting flat panel surfaces. It uses a rubber roller to apply paint, a steel roller to meter paint, and a paint pump to recycle paint;
2. Line speed 3-18 meters/minute, quick-release rubber roller, high production efficiency;
3. Coating amount 8-30g, adjustable, thin and uniform paint film, good coating effect;
4. Feed speed adjustment, board thickness setting, paint heating, intelligent controller, simple and practical operation;
5. Steel and rubber rollers can be optionally equipped with motor lifting, emergency pneumatic lifting protection for rubber rollers;
6. Interlock protection, three-phase five-wire power supply system, safe operation.

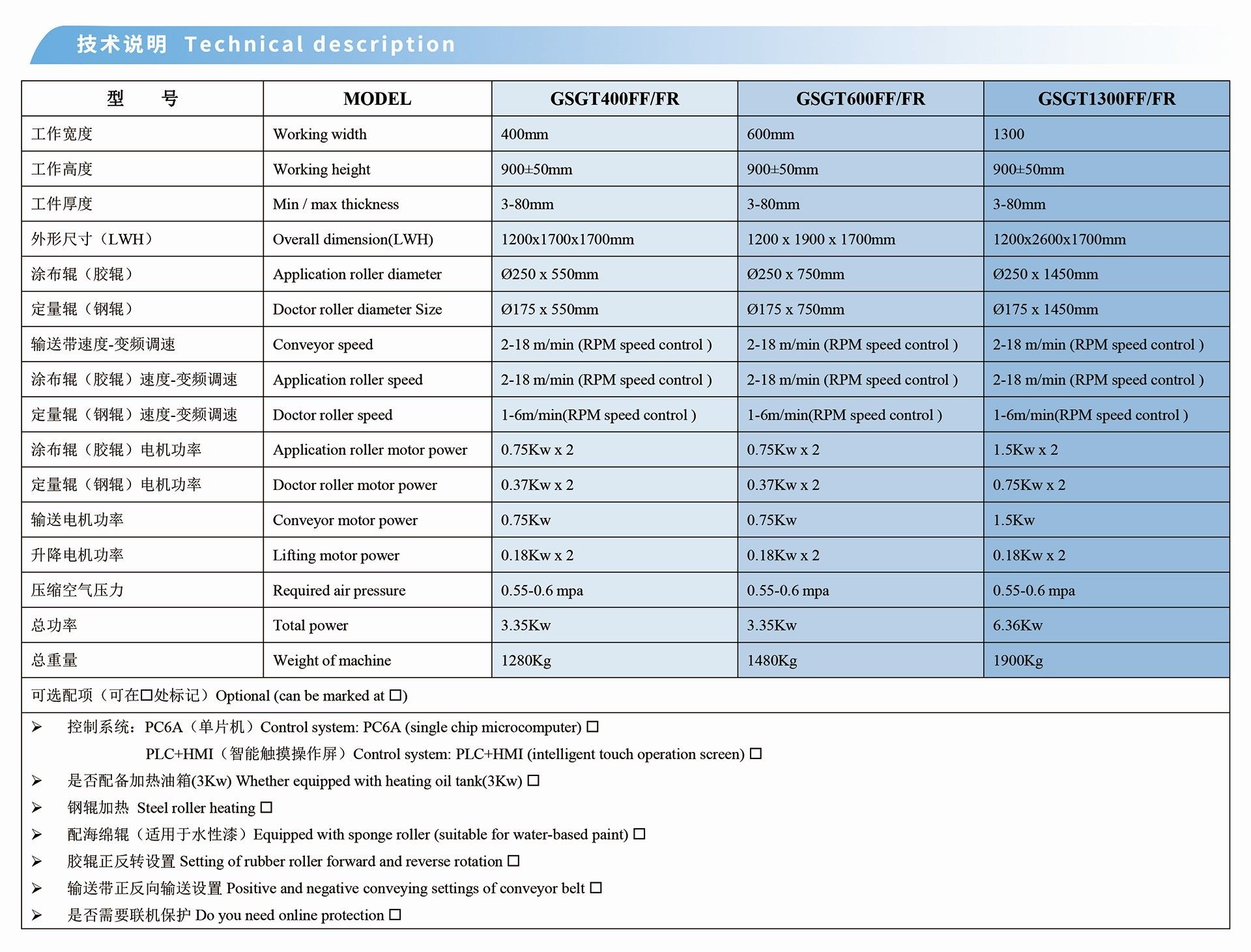

 Effective processing width: 1300mm
 Effective processing thickness: 3-80mm
 Processing length: 300mm
 Conveying speed: 18m/min
 Conveying power: 0.75kw
 Coating roller power/size: 0.75kw/0250*1500mm
 Distribution roller power/size: 0.37kw/ei75*1500mm
 Overall dimensions (L*W*H): 2000mm*2700mm*1700mm
